外螺紋直角型青銅船用截止閥
GB/T595-1983船用外螺紋青銅截止閥 Marine bronze male thread stop valve 性能規范 Technical Data 外螺紋直角型青銅 船用截止閥 性能規范 公稱壓力 Nominal Pressure(MPa) 公稱通徑 Nominal Diameter(mm) 適用介質 Applicable medium 4.0 15-32 淡水、滑油...
- 產品詳情
GB/T595-1983船用外螺紋青銅截止閥
Marine bronze male thread stop valve
性能規范 Technical Data
主要零部件材質Materials of Main Parts
Marine bronze male thread stop valve
性能規范 Technical Data
| 公稱壓力 Nominal Pressure(MPa) | 公稱通徑 Nominal Diameter(mm) | 適用介質 Applicable medium |
|---|---|---|
| 4.0 | 15-32 | 淡水、滑油、燃油和t≤400℃蒸汽 |
| 10.0 | 6-32 | Fresh water，Lubricanting oil,Fuel oil.≤400℃steam |
主要零部件材質Materials of Main Parts
| 零件名稱Parts name | 材料 Material | |
|---|---|---|
| 名稱Name | 牌號Marks | |
| 閥體Body | 不銹鋼 Stainless steel | DN10~6;2Cr13 |
| 鑄鋁青銅 Cast Aluminum Bronze | DN6~32;ZCuAI9Mn2 | |
| 閥蓋Cover | 鑄鋁青銅 Carbon steel、Cast Aluminum Bronze | CuAI9Mn2 |
| 閥盤、閥桿Disc、Stem | 不繡鋼、鋁青銅 Stainless steel、Aluminum Bronze | 2Cr13Z、CuAI9Mn2 |

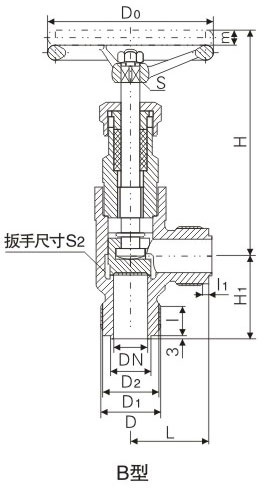

基本尺寸Dmiensions
|
公稱壓力 PN(Mpa) |
公稱通徑 DN(mm) |
結構尺寸 Structure dimension |
蜾紋接頭 Thread joint |
扳手尺寸 Wrench size S2 |
手輪 Hand wheel |
升程 Lift range m |
參考重置 Weight(kg) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | H≈ | H1 | ||||||||||||
| B型 | B型 | D | D1 | D2 | I | l1 | B型 | Do | S1 | B型 | ||||
| 10.0 | 6 | 37 | 90 | 32 | M22x1.5 | 19.8 | 10 | 14 | 3 | 24 | 65 | 7 | 5 | 0.45 |
| 10 | 47 | 109 | 38 | M27x1.5 | 24.8 | 14 | 16 | 3 | 30 | 80 | 8 | 7 | 0.86 | |
|
公稱壓力 PN(Mpa) |
公稱通徑 DN(mm) |
結構尺寸 Structure dimension |
蜾紋接頭 Thread joint |
扳手尺寸 Wrench size S2 |
手輪 Hand wheel |
升程 Lift range m |
參考重置 Weight(kg) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | H≈ | H1 | ||||||||||||
| B型 | B型 | D | D1 | D2 | I | l1 | B型 | Do | S1 | B型 | ||||
| 4.0 | 15 | 55 | 143 | 52 | M36x2 | 33 | 22 | 22 | 5 | 41 | 80 | 8 | 10 | 1.54 |
| 20 | 58 | 153 | 55 | M39x2 | 36 | 25 | 23 | 5 | 46 | 100 | 9 | 12 | 1.91 | |
| 25 | 65 | 167 | 64 | M48x2 | 45 | 32 | 26 | 6 | 50 | 120 | 11 | 14 | 2.37 | |
| 32 | 70 | 197 | 72 | M56x2 | 53 | 38 | 28 | 6 | 60 | 140 | 12 | 16 | 4.21 | |
| 10.0 | 15 | 60 | 164 | 52 | M36x2 | 33 | 22 | 22 | 5 | 41 | 120 | 11 | 10 | 2.06 |
| 20 | 67 | 194 | 55 | M39x2 | 36 | 25 | 23 | 5 | 46 | 140 | 12 | 12 | 3.19 | |
| 25 | 67 | 204 | 64 | M48x2 | 45 | 32 | 26 | 6 | 55 | 140 | 12 | 14 | 3.60 | |
| 32 | 73 | 220 | 75 | M56x2 | 53 | 38 | 28 | 6 | 65 | 160 | 14 | 16 | 4.35 | |
聲明：本文中所有文字、數據、圖片均只適用于參考，外螺紋直角型青銅船用截止閥性能參數、結構尺寸參數、價格等詳情，請聯系我們，電話：021-80392609。
-
